SB-104 battery question

Simple one this, I am currently trying to breathe life into an old pair of strobes, so I can have a pair of wide angle strobes permanently at home (meaning I don't have to bring heavy wide angle strobes on low-cost European flights).

I am running a pair of old Nikonos strobe, an SB102 and SB104:

The SB102 is working great - but I was disappointed with the charge on the SB104. Before I cut up the battery pack - as indicated on this great thread here, I would like to check I am charging it correctly (I don't have a manual).

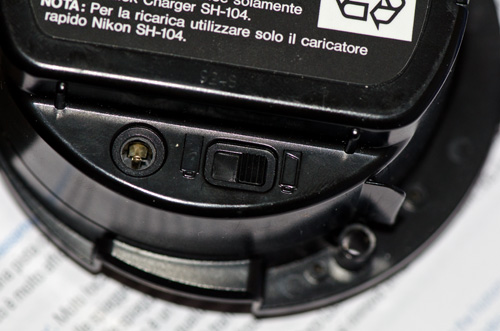

What is this switch on the battery pack for - and which way should it be switched for charging and shooting?

Many thanks,

Alex

If I remember correctly it is just a reminder switch and does not actually do anything.

Yes, as Tom already noted, this is a dumb switch, serving only as a reminder for whether the pack is charged or not. I personally never use it !

I have rebuilt all my packs replacing the 1600 mAH NiCds with 4200 mAH NiMhs (don't forget to reuse the charging port's diode, and the thermal fuse located between the cells). I got very helpful info from Chuck Tribolet's page http://www.garlic.com/~triblet/sb104/ to start with, and took it from there.

I haven't checked the performance of the strobes, as far as number of full flashes is concerned, but I guesstimate to be no less than 300. That should be more than enough for a normal dive shoot, considering than most of the firings will not be at full power, and that would bring the number up, even higher. The awesome upgrade is on the recycle time, which is a fraction of the one from NiCds. (The strobe's thermal cutoff will kick-in a lot more frequently if you shoot paparazzi style!)

I also replaced the Nikon chargers with newer NiMh capable ones. I decided to do this for two purposes: first, I wasn't so sure how the old nikon NiCd chargers would behave with the new huge capacity and different technology cells (didn't care to experiment as well), and second, the two new small chargers I got are (combined) smaller and lighter than one of my Nikon ones (helps with travel weight management).

Hope I helped a little...

P.S. I must have a manual for the charger and for the battery pack laying around somewhere. If you need any info mail me.

Yes, as Tom already noted, this is a dumb switch, serving only as a reminder for whether the pack is charged or not. I personally never use it !



I have rebuilt all my packs replacing the 1600 mAH NiCds with 4200 mAH NiMhs (don't forget to reuse the charging port's diode, and the thermal fuse located between the cells). I got very helpful info from Chuck Tribolet's page http://www.garlic.com/~triblet/sb104/ to start with, and took it from there.



I haven't checked the performance of the strobes, as far as number of full flashes is concerned, but I guesstimate to be no less than 300. That should be more than enough for a normal dive shoot, considering than most of the firings will not be at full power, and that would bring the number up, even higher. The awesome upgrade is on the recycle time, which is a fraction of the one from NiCds. (The strobe's thermal cutoff will kick-in a lot more frequently if you shoot paparazzi style!)



I also replaced the Nikon chargers with newer NiMh capable ones. I decided to do this for two purposes: first, I wasn't so sure how the old nikon NiCd chargers would behave with the new huge capacity and different technology cells (didn't care to experiment as well), and second, the two new small chargers I got are (combined) smaller and lighter than one of my Nikon ones (helps with travel weight management).



Hope I helped a little...



P.S. I must have a manual for the charger and for the battery pack laying around somewhere. If you need any info mail me.

The Nikon charger works just fine with the NiMH cells I rebuild with.

Chuck
