Fibre Optic connector for Retra Strobe

CaolIla
in Tutorials, How-Tos, DIY

Featured Replies

Posted

Hi

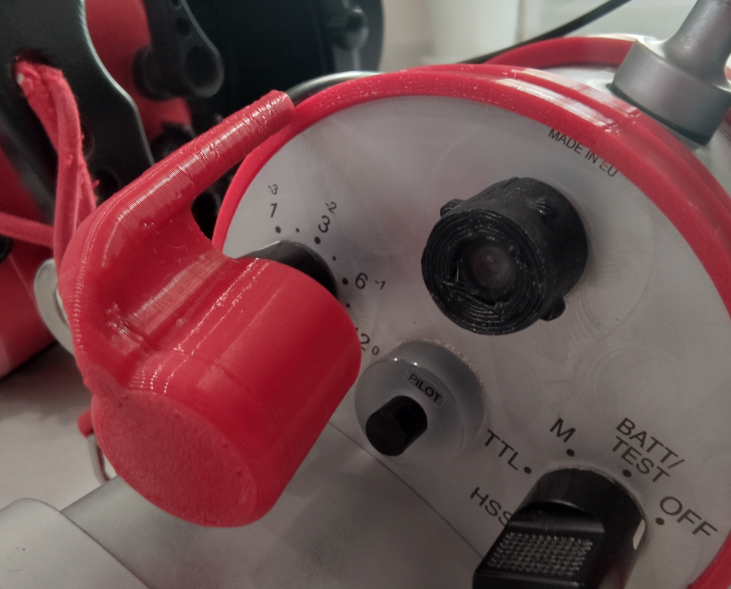

I build 1 or 2 years ago this connector


The target of this item is to bring the FO cable near of the arm without a large amount of cable and avoid to break it if it is catched in someting

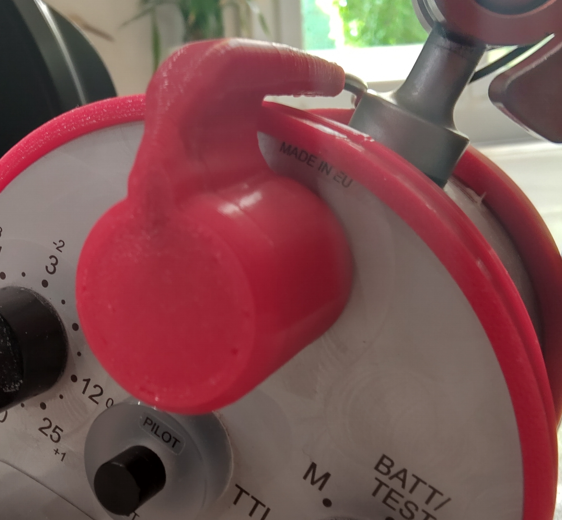

Easy to remove

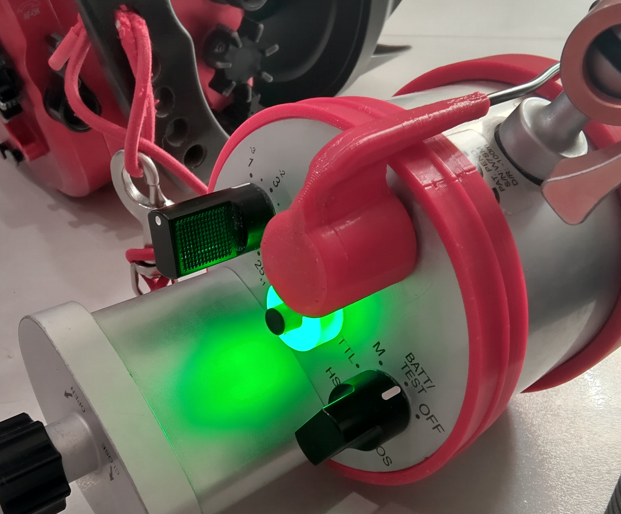

And the small black part is allways protecting the cell of the Retra

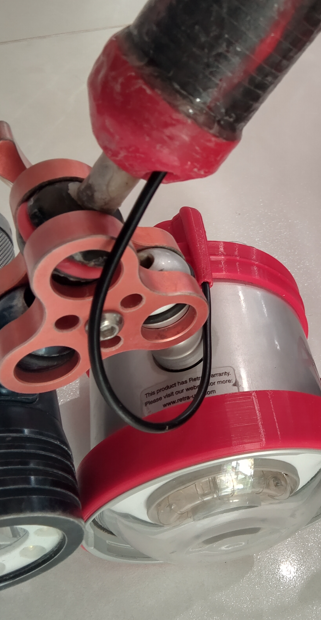

The FO is going into the arm.. clean

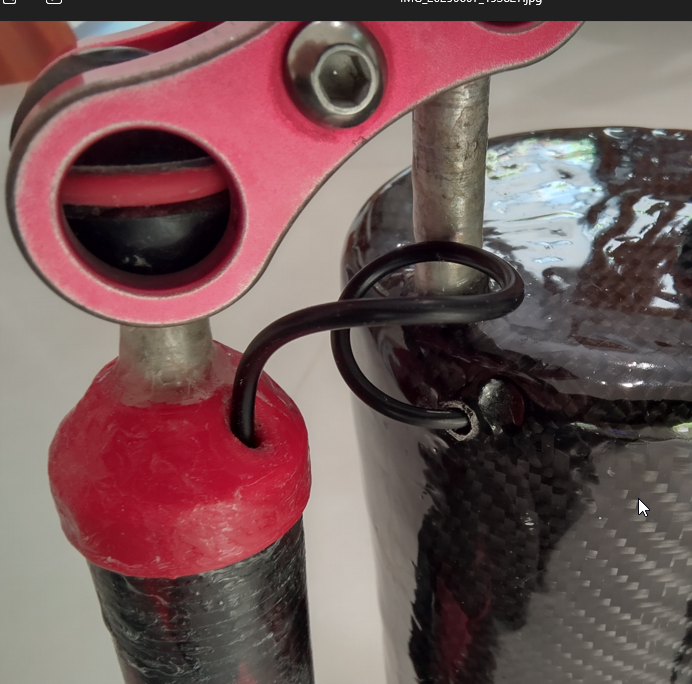

On the top coming out and go in the big floating arm

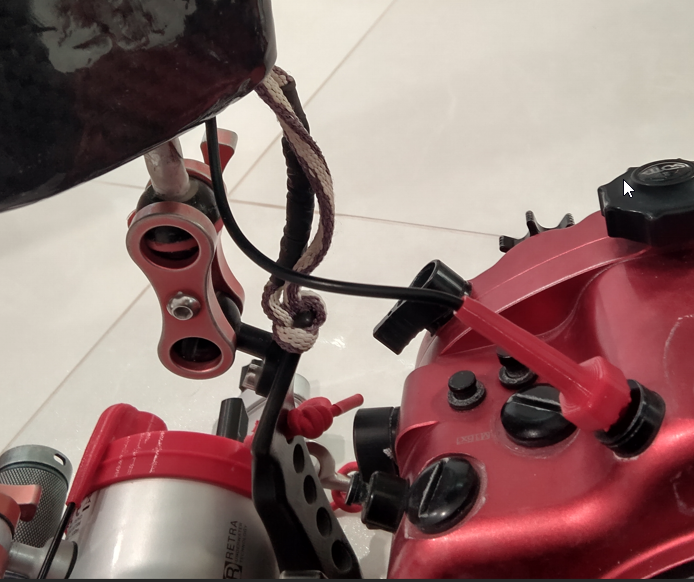

and again comes out near of the housing where the FO is attach with my selfmade connector

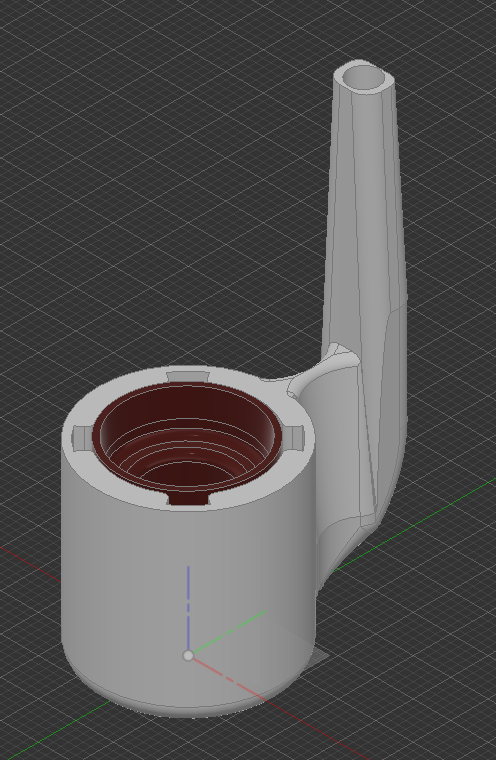

All this pieces are printed with TPU

If want want the stl feel free to ask me.

Hugues

    •
    • Like 3
    • Thanks 1
    • Author
    23 hours ago, CaolIla said:

    If want want the stl feel free to ask me.

    Sorry "If you want the STL feel free to ask me"
