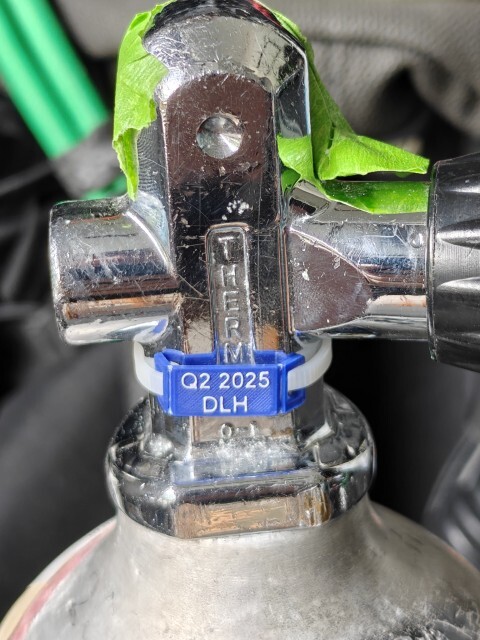

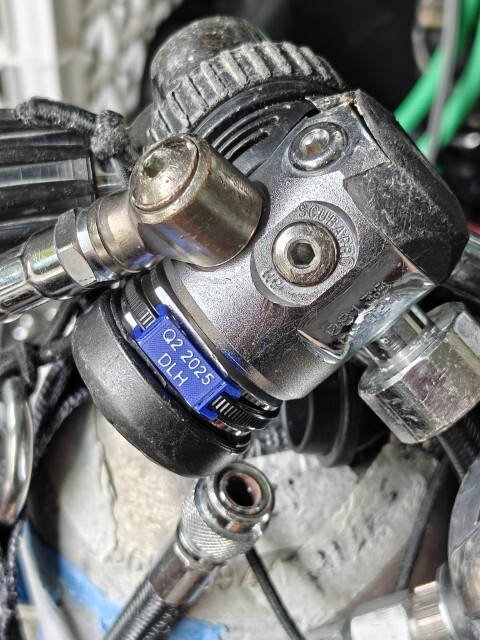

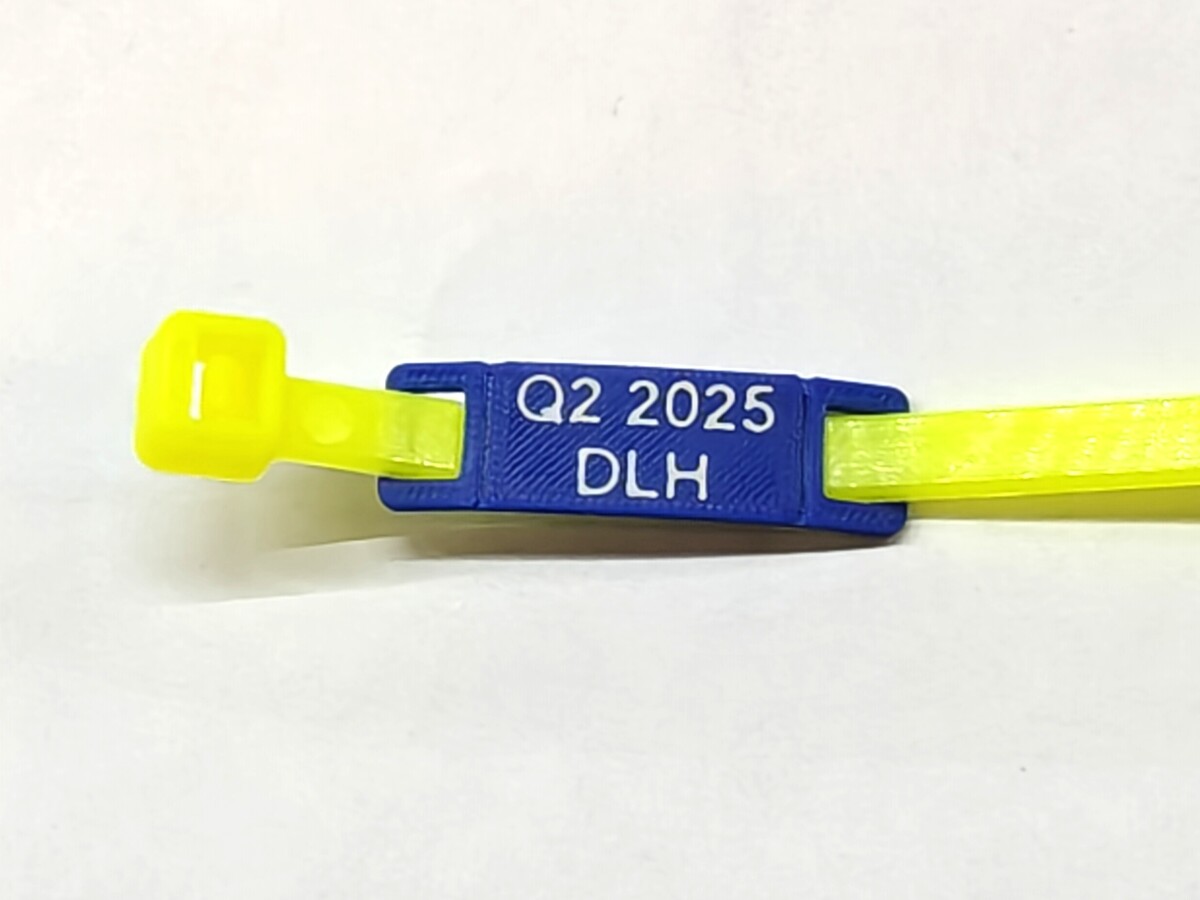

Proven 3D printed Parts For Underwater Imaging

Davide DB
Davide DB
in Tutorials, How-Tos, DIY

Featured Replies

I just finished my Lensbaby Focus gear. It took 4 parts, but it works great. The lens is very simple and does NOT support autofocus or aperture control from the camera. Entirely manual. I made it for a friend that likes to experiment with these creative lenses.



  1. Spacer to sit under the gear and raise it to the level of the Housing's cog.
  2. Gear with slots to engage the collar and turn the gear. Slides over the collar and supports the telescoping lens.
  3. TPU sleeve to grip the lens
  4. Collar with pegs to engage with the gear cylinder

LensBaby 56mm Focus (1) (Medium).jpg



LensBaby 56mm Focus (2) (Medium).jpg



LensBaby 56mm Focus (3) (Medium).jpg

    • Like 2
    • Thanks 1
    • Replies 81
    • Views 10.5k
    • Created
    • Last Reply

    Top Posters In This Topic

    Popular Days

    Most Popular Posts

    • brightnight
      brightnight

      N120 body cap found on Thingiverse worked for me:   https://www.thingiverse.com/thing:5326351/files         Files attached too: Nauticam N120 Port Cover Male

    • Tino Dietsche
      Tino Dietsche

      Hello everyone, Over the last few weeks I have created new parts for underwater photography for the 3D printer, perhaps one or two of you can use some of them. This time they are parts that are i

    • Tino Dietsche
      Tino Dietsche

      Hello everyone, Since my used Nauticam WWL-1 lens didn't come with a back cap, I made a suitable one. It also works for the bayonet mount. I hope someone can use this. https://makerworld.com/en/mo

    Posted Images

    • 1 month later...
    • 5 weeks later...

    Another cold weekend here so I setup my gear with the printed adaptor plate for the Nauticam flexi tray. Even above water the setup is rock solid including the ball head. The tripod legs only just stay in place with the weight of the camera and light, but that should be no problem in-water. An issue might be to get low enough to the subject as the ball head adds quite a bit of height. Might have to look for a lower profile version of a ball head or even just use a "levelling ball head".


    •
    • Thanks 1
    • 3 weeks later...
    • 1 month later...
    On 6/21/2024 at 8:17 AM, Alex Tyrrell Dive4Photos said:

    Hi has anyone printed a N100 Port Cover Female (Rear Port Cap) and would be willing to share the files so I could get some printed locally?



    I think this should work. It works on my 3D printed N100 ports. I don't have an actual Nauticam port to try it on. Maybe get one printed first, and if it works well order more.



    Edited by Davide DB
    Wrong file: removed

    10 hours ago, Alex Tyrrell Dive4Photos said:

    I had Isaac’s N100 Female Port Cover printed and they fit the N100 port perfectly, probably a better fit than what is supplied from Nauticam! Thanks again @Isaac Szabo





    That's great to hear. Glad it worked for you.

    • Like 1
    • 1 month later...

    Semi hard covers for Nautical 180 Ports. The blueV2 version uses less bungee to hold cover in place. The slots are to accommodate GoPro mounts. A V3 cover has more robust bungee receptacles(not shown).



    •
    • Thanks 1

    Printed with TPU. Never liked the idea of neoprene covers for domes. The hard covers hold on very well. I am not sure how to get proven stauts, but they work for my needs.

    Edited by Tobyone
    Added thought.

    • Like 1
    • Author
    8 minutes ago, Tobyone said:

    Printed with TPU. Never liked the idea of neoprene covers for domes. The hold on very well. I am not sure how to get proven stats, but they work for my needs.



    Link to your post added.

    Could you link a printing file?



    Thanks a lot

    Will do that. I would expand the circumference about 1.5mm from the original slice. The last print fit a little tight at the top.It could be different on other printers or slicer. I sliced using Cura with tree supports. Printed on Reality CR10 V2

    V5_180 dome cover nauticam .stl

    Edited by Tobyone
    added info

    • Thanks 1
    On 8/8/2024 at 4:39 PM, Tobyone said:

    Semi hard covers for Nautical 180 Ports. The blueV2 version uses less bungee to hold cover in place. The slots are to accommodate GoPro mounts. A V3 cover has more robust bungee receptacles(not shown).



    Would be amazing if we could get something like this as well for other port sizes (e.g.140mm, 230mm) 😇

    • Like 1
    On 8/8/2024 at 9:05 AM, Tobyone said:

    Will do that. I would expand the circumference about 1.5mm from the original slice. The last print fit a little tight at the top.It could be different on other printers or slicer. I sliced using Cura with tree supports. Printed on Reality CR10 V2

    V5_180 dome cover nauticam .stl 6.43 MB · 1 download

    I'm surprised you needed supports for this. What orientation did you print in?

    1 hour ago, Fabian said:

    Would be amazing if we could get something like this as well for other port sizes (e.g.140mm, 230mm) 😇

    Just have to measure and scale slicer file.

    The bungee retainers needed support. I could modify angles or increase the suport angle in aura. It was printed top down. V5 needed less support.

    Edited by Tobyone
    added material

    • Like 2
